- Max consumption 40 Watt
- WARRANTY : 2 years Kit + 5 years motor
- 99.99% copper wire
| BLDC Motor | Size 56″ |
| 360 RPM | Factory Warranty |
| Comes with a remote | 220/230 Volts / 12 Volts |

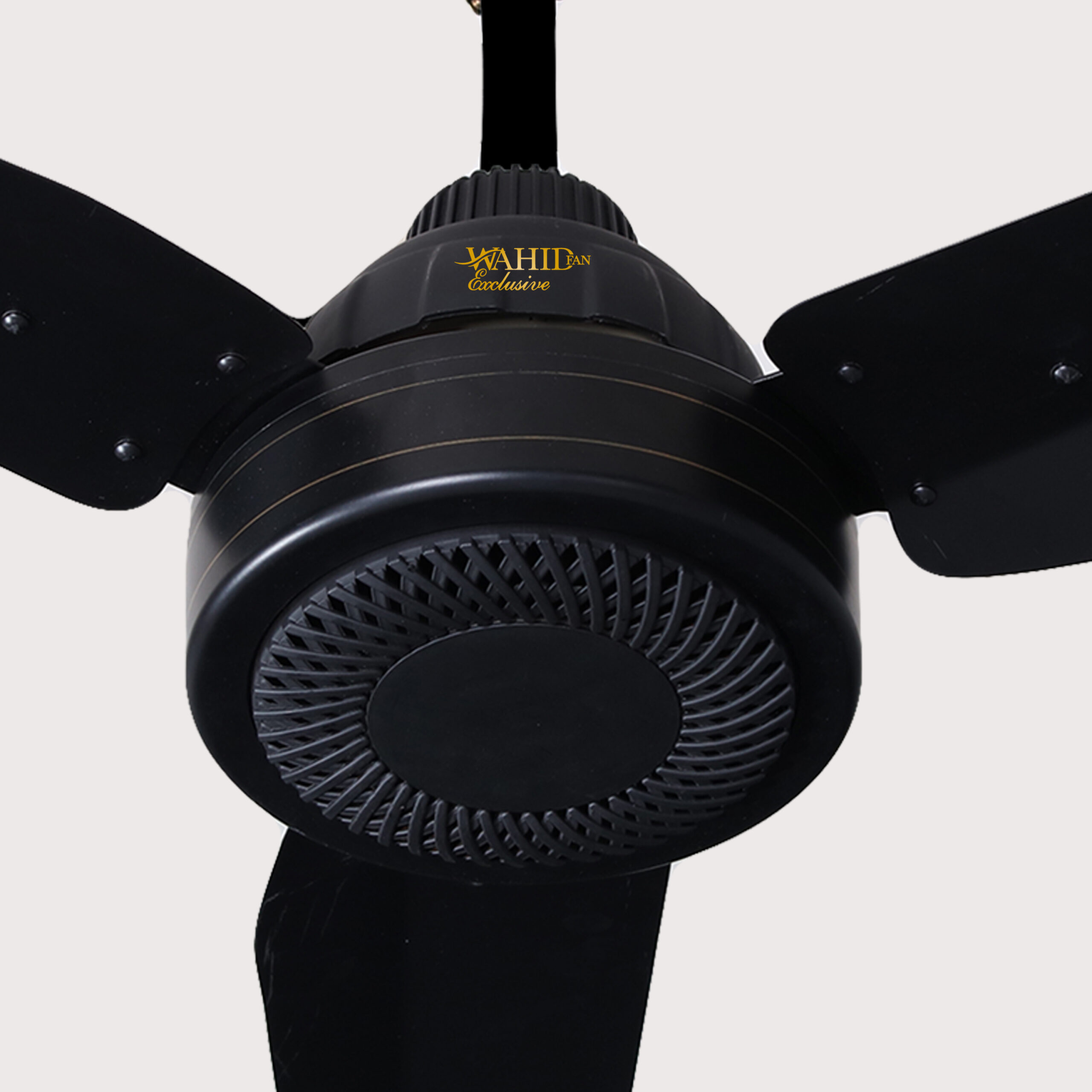

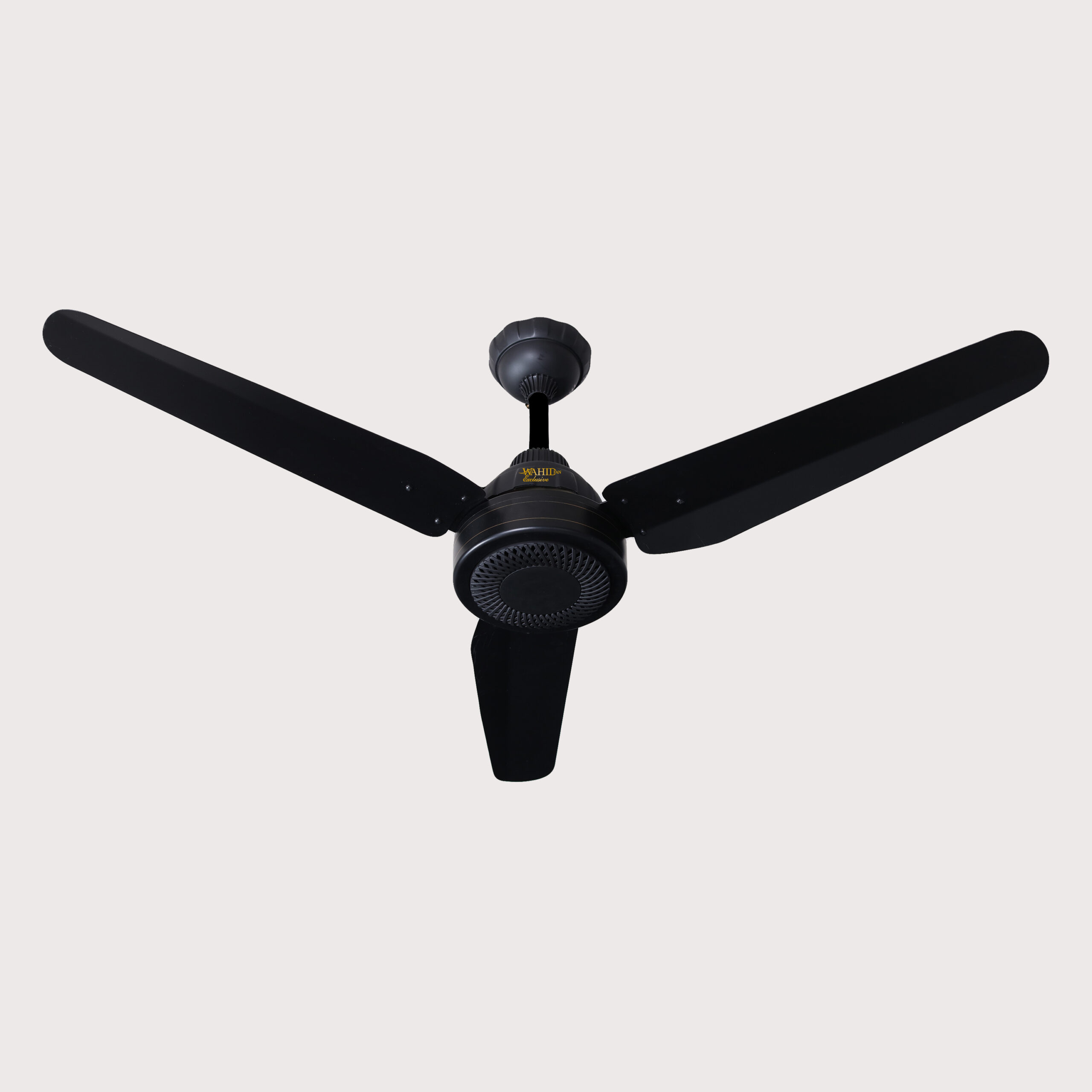

Orio Series
₨10,999.00
-
Salient Features:
- Energy efficient durable motor
- Aerodynamically designed blades for maximum air delivery
- Packed in strong corrugated carton with protective thermopore
- Rustproof Strong Body
Packing Details
- Box 1: Fan motor + top cover(s) + supply wires
- Box 2: Blades set + down rod
More Details:
The Orio Series by Wahid Fan Exclusive is a premium ceiling fan collection designed to deliver powerful airflow, modern elegance, and long-lasting performance. Crafted with high-quality materials and precision engineering, this series ensures durability, stability, and smooth operation for everyday use.
Equipped with an energy-efficient motor and aerodynamically balanced blades, the Orio Series provides strong and consistent air circulation, making it ideal for bedrooms, living rooms, offices, and commercial spaces. Its optimized design enhances cooling efficiency while maintaining low noise levels for a comfortable indoor environment.
The Orio Series is built for reliability and long-term performance, ensuring consistent operation even under continuous use. Its sleek and modern finish adds a stylish touch to any interior, blending functionality with aesthetic appeal.
Perfect for customers who value both performance and design, the Orio Series stands as a dependable cooling solution that enhances comfort while complementing modern living spaces.
Instruction
WARNING:
BE SURE TO SHUT OFF ELECTRICAL SUPPLY AT CIRCUIT BREAKER BEFORE INSTALLATION. INSTALLATION MUST BE DONE BY QUALIFIED ELECTRICIAN ONLY. DO NOT ATTEMPT TO INSTALL THE UNIT YOURSELF. DO NOT USE WITH A DIMMER. ( IMPORTANT: using with a dimmer will void the warranty )
CAUTION:
- Improper installation may result in risk of fire, electrical shock or injury to persons.
- Be sure the fan is to be connected with grounded outlet box.
- Its ESSENTIAL that blades be NO LESS THAN 2.3 meters from the floor and that adequate clearance exists between the fan and adjacent walls, furnishings etc.
- If the fan is operating abnormally, cut the power off immediately for inspection.
- T indicates suitable for tropical climates.
- Ta-Ambient temperature 45 C.
- Children should be supervised to ensure that they do not play with the appliances.
CLEANING:
Disconnect the electrical supply for safety purpose. Use a cloth with a neutral cleaning agent to clean the fan. Then wipe it with dry cloth. DO NOT IMMERSE MOTOR HEAD IN WATER.
Why Wahid Fan Exclusive
| Energy Saving | 99.9% Copper Wire | |||
| Inverter | Electric Steel Sheet | |||
| BLDC | High Power Factor | |||
| ESC Technology | Wireless Remote | |||
| Max Air Delivery | High Quality PCB | |||
| Noiseless Performance | UPS Performance | |||
| High RPM |
Technical Specs
| Model Name | Size | Rated Voltage | Frequency | Power | Speed | Insulation Class | Power Factor | Current | Air delivery | Tropical Climate |
| mm | V~ | Hz | Watt | RPM | Amp. | ㎥/Min | ||||
| ALL MODELS | 1400 | 220 | 50 | 40 | <= 350 | F(155) | 0.98 | 0.14 | 236 | T |
| Color | Black, Brown, Off White |
|---|
